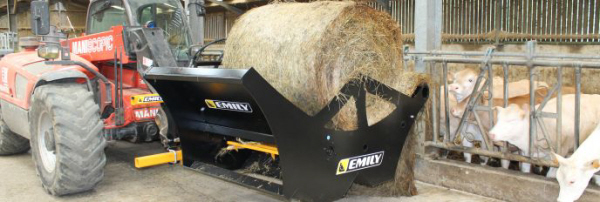

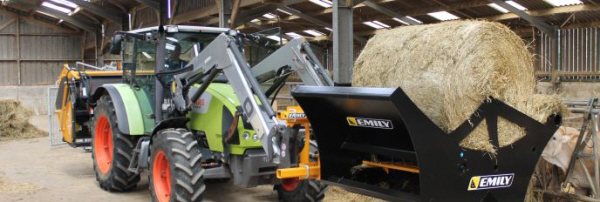

The Pick & Go Bale Unroller

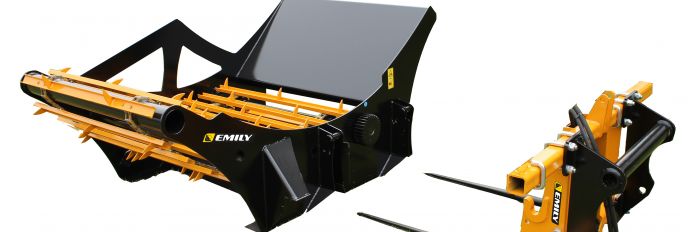

The Pick & Go Bale Unroller will fit, front loader, rear linkage of tractor, or telescopic handler. It loads and unrolls round bales (wrapped bales, alfalfa, hay …). The Pick & Go system is composed of 2 parts: the bale fork and the unroller. A gear system composed of two toothed wheels drives the roller belt.
Loading
The bale fork is fitted to the machinery handler (hydraulic connection) and directly loads the bale on the roller belt.
Hitching
The hitching is made with the tines of the bale fork under the bale unroller. By lifting the bale fork adaptation hitches the unroller.
Unrolling
When the bale fork hitches the unroller the 2 toothed wheels lock and activate the hydraulic motor which drives the roller belt and unrolls the bale.
